Aqualuminator Pool Light - Bulb Replacement

The Aqualuminator Pool Light is one of the best accessories available for an above ground pool. It adds a great “built-in” light look without drilling additional holes into the wall. Since it attaches to the pool through the existing return fitting cutout, installing and maintaining the Aqualuminator couldn’t be any easier. The Aqualuminator replaces the water return fitting where the filtered water would normally shoot back into thaqe pool through the “eyeball” or return jet.

Aqualuminator Assembly

Below are the assembly instructions for the Aqualuminator.

Aqualuminator Assembly Diagram

Replacing Your Aqualuminator Light Bulb

1.

The transformer/power supply cap (not shown above) needs to be removed in order to expose the nut (bulb assembly). Slowly rotate the cap while pulling outwards to remove the cap.

transformer/power supply cap

2.

The transformer/power supply cap (not shown above) needs to be removed in order to expose the nut (bulb assembly). Slowly rotate the cap while pulling outwards to remove the cap.

Insulated COnductors

3.

Remove the nut (bulb assy.) that holds the bulb to the body and tight against the flow director by turning counter-clockwise. This nut is accessible from the outside of the pool, and when removed, allows the light to also be removed.

Bulb Retainer Nut

4.

From the inside of the pool, detach both the bulb assembly and the flow director.

Use a folded rag to contain pool water

IMPORTANT – Water will flow out of the back of the body if not covered with your hand between steps 3 and 4. As soon as the bulb is removed, water will be able to flow out of the pool. It may be helpful to have someone assist you during this process.

5.

After they are removed, only the flange, gaskets and the body will remain connected. These pieces will stay connected and will not be disassembled. The new Aqualuminator pool light can now be inserted into the flange with the flow director. This will stop any water flow from the pool.

Aqualuminator Parts

6.

The nut (bulb assembly) can be reattached securing the light in place.

Press Together

7.

Connect the transformer terminals to the new light and replace the cap to protect the wires.

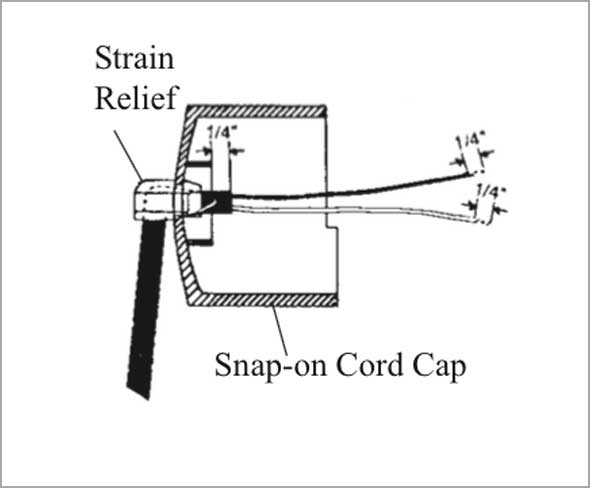

Strain Relief
