How to connect the hoses on your hydrotools
sand filter system

Learn how to connect the three different hoses on your Hydrotools Sand Filter System.

featured-how-to-connect-hoses-hydrotools-sand-filter.webp__PID:a691fee4-57fc-4038-bf9c-f86e6b74dd4a

The following article will describe and illustrate how to connect the three hoses included with your Hydrotools Sand Filter System.

how-to-connect-hoses-hydrotools-sand-filter-before.webp__PID:ed394028-79a2-48a2-a1bf-43532f70744b
how-to-connect-hoses-hydrotools-sand-filter-before.webp__PID:ed394028-79a2-48a2-a1bf-43532f70744b

Scroll through the images below to view the step-by-step process of installing your filter's hoses.

how-to-connect-hoses-hydrotools-sand-filter-step-1.webp__PID:8b195ab0-2d6c-45b6-9cc0-f7f688fa1ba7

Step 1 - Scroll through the steps by clicking on the arrow in each image.

Apply teflon tape to the threads of one of the Hose Adapters.

how-to-connect-hoses-hydrotools-sand-filter-step-2.webp__PID:c242283d-7e20-4553-9690-03ec19b80a11

Step 2

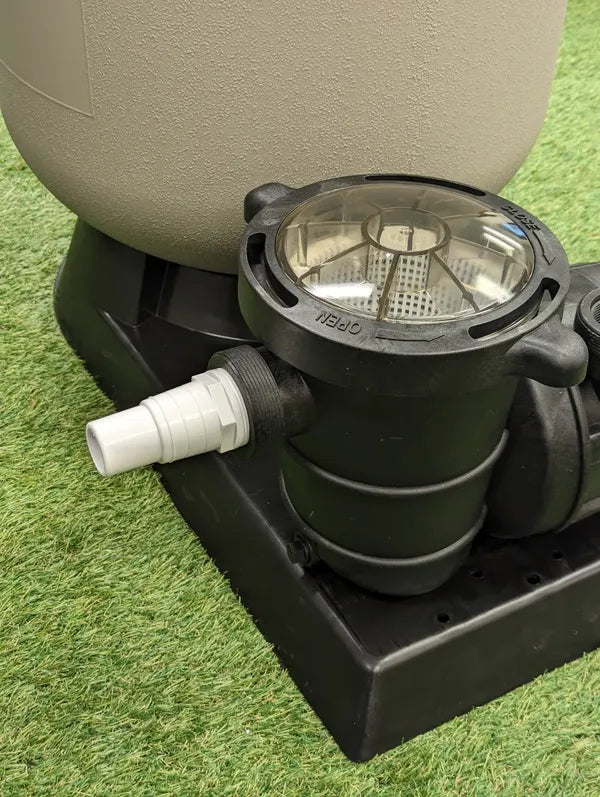

Insert the Hose Adapter into the internal threads of the pump's strainer housing (front of pump).

how-to-connect-hoses-hydrotools-sand-filter-step-3.webp__PID:c76f1b1b-7b32-420d-84ab-619c08551286

Step 3

Slide one end of the 6' Hose over the Hose Adapter and secure it using a Hose Clamp.

how-to-connect-hoses-hydrotools-sand-filter-step-4.webp__PID:07aa657e-7366-44bb-ae73-323a2b98da38

Step 4

Attach the other end of the 6' Hose to your thru-wall skimmer's hose adapter using a hose clamp. Installation of the first filter hose is complete.

how-to-connect-hoses-hydrotools-sand-filter-step-5.webp__PID:4a4fd0db-aaa2-4936-a590-1df86866d84f

Step 5

Locate the port on your 6-Way Top Mount Valve that says "PUMP".

how-to-connect-hoses-hydrotools-sand-filter-step-6.webp__PID:a5c98ea2-4175-43a0-ad36-88656f015710

Step 6

Apply teflon tape to the threads of the Pump Hose Union Adapter Fitting.

how-to-connect-hoses-hydrotools-sand-filter-step-7.webp__PID:9352b2cc-81ea-4141-bc21-6803d24c0a04

Step 7

Insert and screw the Pump Hose Union Adapter Fitting into the port labeled "PUMP".

how-to-connect-hoses-hydrotools-sand-filter-step-8.webp__PID:244e933f-3d4e-4edc-bf7e-ad4b220aad15

Step 8

Identify your High Pressure Pump to Filter Hose Assembly.

how-to-connect-hoses-hydrotools-sand-filter-step-9.webp__PID:bd4000d4-7b06-4050-b41e-0bcdfc6c93a3

Step 9

Locate the O-rings for the High Pressure Pump to Filter Hose Assembly (found in accessories bag). There are (2) O-rings required; one for each end of the hose. Both of the unions at the end of the hose require an o-ring.

how-to-connect-hoses-hydrotools-sand-filter-step-10.webp__PID:f61caa94-3291-47b9-80e3-017a072cc5d8

Step 10

Insert the O-ring into the grove on the union of your High Pressure Pump to Filter Hose Assembly (one on each end).

how-to-connect-hoses-hydrotools-sand-filter-step-11.webp__PID:5b8288d5-fa6a-4bf9-8b0e-997ef8b035d2

Step 11

Attach your High Pressure Pump to Filter Hose Assembly to the High Pressure Hose Adapter Fitting.

how-to-connect-hoses-hydrotools-sand-filter-step-13.webp__PID:f04ec0b1-f2df-470c-82d9-6282e0f1ac0b

Step 13

Attach the other end of your High Pressure Hose to the top of your pump.

how-to-connect-hoses-hydrotools-sand-filter-step-14.webp__PID:84e70049-463b-4dca-bc79-65d6966389fa

Step 14

The installation of your second filter hose is complete.

how-to-connect-hoses-hydrotools-sand-filter-step-15.webp__PID:f469d0c9-279b-429a-a6e8-1723e22dc128

Step 15

Locate the port of your 6-Way Top Mount Valve that says "RETURN".

how-to-connect-hoses-hydrotools-sand-filter-step-16.webp__PID:dcd0bf6d-a7e5-4324-a479-b01b2e185cfe

Step 16

Locate an additonal Hose Adapter Fitting and apply teflon tape to the threads.

how-to-connect-hoses-hydrotools-sand-filter-step-17.webp__PID:be5de3cc-f15d-4964-a74a-2ca5d66073cf

Step 17

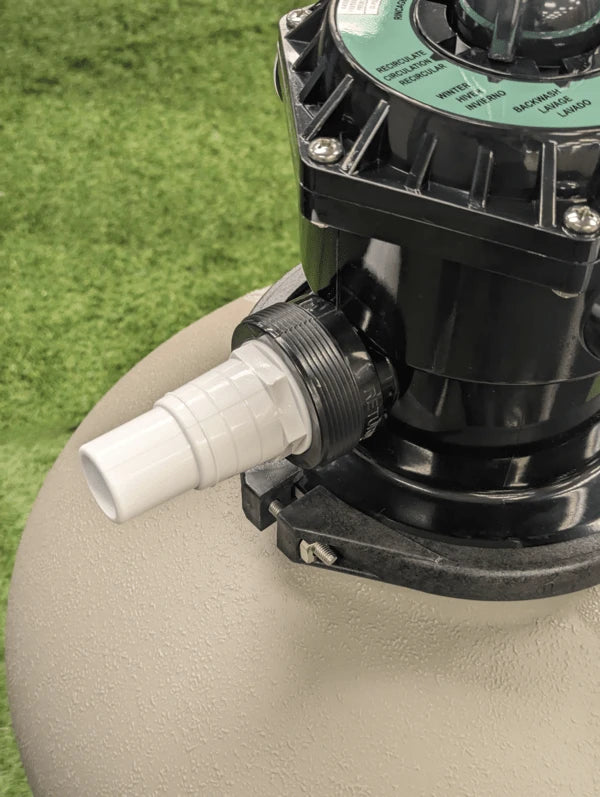

Insert the Hose Adapter Fitting into the port labeled "RETURN".

how-to-connect-hoses-hydrotools-sand-filter-step-18.webp__PID:959a8a66-6ccc-42a3-a861-f2df885ceee2

Step 18

Slide one end of the 6' Hose over the Hose Adapter Fitting and secure it using a Hose Clamp.

how-to-connect-hoses-hydrotools-sand-filter-step-19.webp__PID:de0def17-2c49-41d9-b86f-d7e81ceafbce

Step 19

Attach the other end of the 6' Hose to your return jet's hose adapter using a hose clamp. Installation of the final hose is complete.

how-to-connect-hoses-hydrotools-sand-filter-step-1.webp__PID:8b195ab0-2d6c-45b6-9cc0-f7f688fa1ba7

Scroll →

Step 1

Apply teflon tape to the threads of one of the Hose Adapters.

how-to-connect-hoses-hydrotools-sand-filter-step-2.webp__PID:c242283d-7e20-4553-9690-03ec19b80a11

← Scroll →

Step 2

Insert the Hose Adapter into the internal threads of the pump's strainer housing (front of pump).

how-to-connect-hoses-hydrotools-sand-filter-step-3.webp__PID:c76f1b1b-7b32-420d-84ab-619c08551286

← Scroll →

Step 3

Slide one end of the 6' Hose over the Hose Adapter and secure it using a Hose Clamp.

how-to-connect-hoses-hydrotools-sand-filter-step-4.webp__PID:07aa657e-7366-44bb-ae73-323a2b98da38

← Scroll →

Step 4

Attach the other end of the 6' Hose to your thru-wall skimmer's hose adapter using a hose clamp. Installation of the first filter hose is complete.

how-to-connect-hoses-hydrotools-sand-filter-step-5.webp__PID:4a4fd0db-aaa2-4936-a590-1df86866d84f

← Scroll →

Step 5

Locate the port on your 6-Way Top Mount Valve that says "PUMP".

how-to-connect-hoses-hydrotools-sand-filter-step-6.webp__PID:a5c98ea2-4175-43a0-ad36-88656f015710

← Scroll →

Step 6

Apply teflon tape to the threads of the Pump Hose Union Adapter Fitting.

how-to-connect-hoses-hydrotools-sand-filter-step-7.webp__PID:9352b2cc-81ea-4141-bc21-6803d24c0a04

← Scroll →

Step 7

Insert and screw the Pump Hose Union Adapter Fitting into the port labeled "PUMP".

how-to-connect-hoses-hydrotools-sand-filter-step-8.webp__PID:244e933f-3d4e-4edc-bf7e-ad4b220aad15

← Scroll →

Step 8

Identify your High Pressure Pump to Filter Hose Assembly.

how-to-connect-hoses-hydrotools-sand-filter-step-9.webp__PID:bd4000d4-7b06-4050-b41e-0bcdfc6c93a3

← Scroll →

Step 9

Locate the O-rings for the High Pressure Pump to Filter Hose Assembly (found in accessories bag). There are (2) O-rings required; one for each end of the hose. Both of the unions at the end of the hose require an o-ring.

how-to-connect-hoses-hydrotools-sand-filter-step-10.webp__PID:f61caa94-3291-47b9-80e3-017a072cc5d8

← Scroll →

Step 10

Insert the O-ring into the grove on the union of your High Pressure Pump to Filter Hose Assembly (one on each end).

how-to-connect-hoses-hydrotools-sand-filter-step-11.webp__PID:5b8288d5-fa6a-4bf9-8b0e-997ef8b035d2

← Scroll →

Step 11

Attach your High Pressure Pump to Filter Hose Assembly to the High Pressure Hose Adapter Fitting.

how-to-connect-hoses-hydrotools-sand-filter-step-13.webp__PID:f04ec0b1-f2df-470c-82d9-6282e0f1ac0b

← Scroll →

Step 13

Attach the other end of your High Pressure Hose to the top of your pump.

how-to-connect-hoses-hydrotools-sand-filter-step-14.webp__PID:84e70049-463b-4dca-bc79-65d6966389fa

← Scroll →

Step 14

The installation of your second filter hose is complete.

how-to-connect-hoses-hydrotools-sand-filter-step-15.webp__PID:f469d0c9-279b-429a-a6e8-1723e22dc128

← Scroll →

Step 15

Locate the port of your 6-Way Top Mount Valve that says "RETURN".

how-to-connect-hoses-hydrotools-sand-filter-step-16.webp__PID:dcd0bf6d-a7e5-4324-a479-b01b2e185cfe

← Scroll →

Step 16

Locate an additonal Hose Adapter Fitting and apply teflon tape to the threads.

how-to-connect-hoses-hydrotools-sand-filter-step-17.webp__PID:be5de3cc-f15d-4964-a74a-2ca5d66073cf

← Scroll →

Step 17

Insert the Hose Adapter Fitting into the port labeled "RETURN".

how-to-connect-hoses-hydrotools-sand-filter-step-18.webp__PID:959a8a66-6ccc-42a3-a861-f2df885ceee2

← Scroll →

Step 18

Slide one end of the 6' Hose over the Hose Adapter Fitting and secure it using a Hose Clamp.

how-to-connect-hoses-hydrotools-sand-filter-step-19.webp__PID:de0def17-2c49-41d9-b86f-d7e81ceafbce

← Scroll

Step 19

Attach the other end of the 6' Hose to your return jet's hose adapter using a hose clamp. Installation of the final hose is complete.

Completed installation of the hoses on your Hydrotools Sand Filter System.

how-to-connect-hoses-hydrotools-sand-filter-complete.webp__PID:23e5d734-21c1-4e58-8a86-d10622450a04
how-to-connect-hoses-hydrotools-sand-filter-complete.webp__PID:23e5d734-21c1-4e58-8a86-d10622450a04
