Daytona Oval Pool Model

Parts Breakdown

Identifying the parts of your swimming pool before the installation process will make the installation a lot easier and go more smoothly. Below you will find a breakdown of the parts that are used on our Daytona Oval Above Ground swimming pool and where they are used and installed.

daytona-oval-parts-listing-exploded-view.jpg__PID:f6d7b222-5276-4919-a055-110f368fb939
daytona-tribeca-buttress-assembly-parts-listing-exploded-view..jpg__PID:e2f6d7b2-2252-46f9-9960-55110f368fb9

Top Ledge – Index I

daytona-top-ledge-650x650-small.jpg__PID:6ec32e86-c0a6-44e8-b3da-1f66af193e0e

Top Ledge

The Top Ledges (sometimes referred to as Top Rails) are the top finishing components of the swimming pool that are placed between the vertical upright posts. The Top Ledges are 7″ wide and are located at the very top of your pool.

Ref #DescriptionPart # Length 15'x26' 15'x30' 18'x33' 18'x40'
ITop Ledge (Straight Section) 40139 40" 810
10
14
Top Ledge (Round Section) 22086 49-1/2" 10
10
Top Ledge (Round Section)2208851-1/8"
12
12

Top Track – Index J

top-track-rim-quest-2_19_2_1125x1125.webp__PID:bc2eb6cf-97d4-40ed-a859-7304f847bf19

Top Track

The Top Tracks (sometimes referred to as Stabilizers) are the tracks that stabilize the top of the pool wall.

Ref #DescriptionPart # Length 15'x26' 15'x30' 18'x33' 18'x40'
JTop Track (Straight Section) 38512 33" 46
6
10
Top Track (Transition Section) 38511 37" 4
444
Top Track (Round Section) 38502 53-1/4" 1010


Top Track (Round Section)3850354-1/8"
1212

Ledge Cover Inner/Outer – Reference B & C

contempra-inside-cap650x650-small-dm_1125x1125.webp__PID:b12b21c6-eab2-4feb-9329-de59888661ac

Ledge Cover Inner

contempra-front-cap650x650-small-dm_1125x1125.webp__PID:62b12b21-c6ea-424f-ab13-29de59888661

Ledge Cover Outer

The Ledge Covers consists of (2) parts. There is a Ledge Cover Inner which goes towards the inside of the pool. The Ledge Cover Outer will go towards the outside of the pool.

The Ledge Covers cover all of the hardware where your Top Ledges screw into the Top Plates.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
BLedge Cover Inner 38625 182022
26
CLedge Cover Outer 38624 1820
2226

Ledge Cover Top – Reference A

contempra-ledge-cover-cap650x650-small-dm_1125x1125.webp__PID:7d201208-01fd-46d7-8821-6836fb434b0b

Ledge Cover Top

The Ledge Cover Tops are installed on top of the Ledge Cover Outer.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
ALedge Cover Top 38626 182022
26

Top Plate – Reference D

contempra-top-plate-650x650-small-dm_1125x1125.webp__PID:0030e1f3-3f46-45b6-a439-208beded63a0

Top Plate

The Top Plates are screwed in at the top of every Upright. Your swimming pool’s Top Ledges will be screwed into these Top Plates.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
DTop Plate38594 182022
26

Uprights – Index E & F

daytona-inner-upright-650x650.png__PID:9d031590-0dc5-44c8-88b5-1e7abe5e92a5

Inner Upright

outer-upright-for-round-and-oval-contempra-daytona-650x650-small.jpg__PID:b405da4d-c613-46db-954e-3f5a89eb7a3b

Outer Upright

The Inner Uprights are the vertical posts on the outside of your swimming pool wall. Each Inner Upright connects to the Foot Covers (Boot).

The Outer Uprights are the vertical posts that cover your Inner Uprights. Each Outer Upright connects to the Foot Covers (Boot).

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
EInner Upright38591 182022
26
FOuter Upright 38589 1820
2226

Foot Cover (Boot) – Reference G

contempra-upright-boot-650x650-small-dm_1125x1125.webp__PID:dda2c1d2-53cb-44fe-a885-23a27261b908

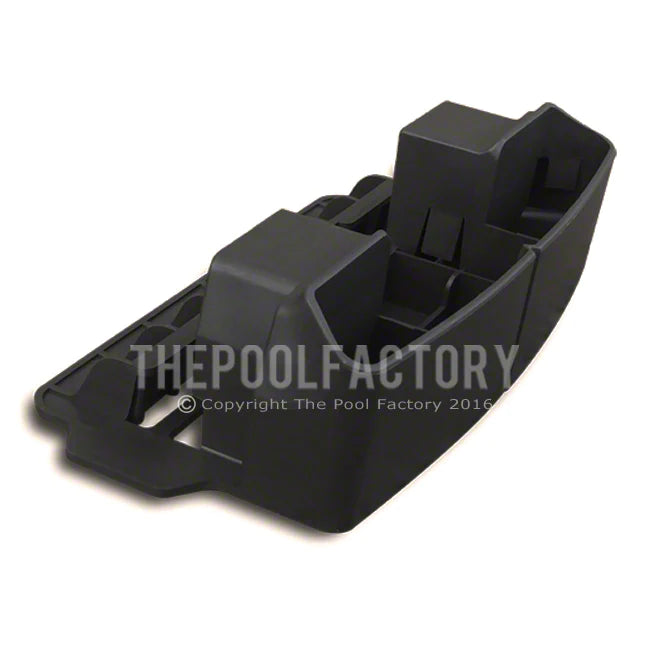

Foot Cover Round Section

contempra-foot-plate-straight-side-650x650-small-dm.webp__PID:a7018934-751b-4d9d-b73f-0e7d19bb1fd9

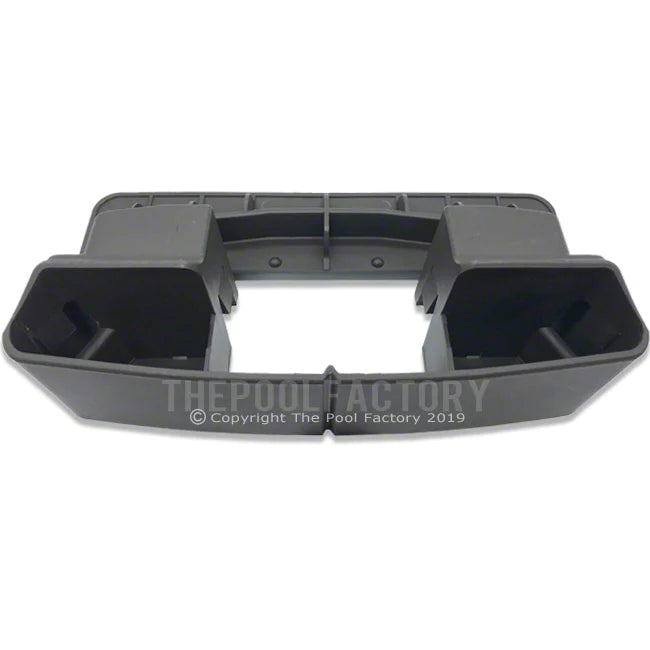

Foot Cover Straight Section

The Foot Covers connect your Bottom Tracks together. Your Uprights will also clip into these Foot Covers.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
GFoot Cover Round Section38627 121214
14
Foot Cover Straight Section 22092 68
812

Upright Channel – Index 1

daytona-tribeca-upright-channel-650x650.png__PID:53788605-f655-4170-a167-e7f936a41882

Upright Channel

The Upright Channel is the vertical post on the straight section of the oval pool. It attaches to the Base U-Channel using the "T" and "L" Brackets.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
1Upright Channel1440383 688
12

Brackets - Index 2, 3 & 4

daytona-tribeca-outside-t-bracket-650x650.webp__PID:99314aaa-d0c8-4530-9413-9b9ae53a6e81

Outside ‘T’ Bracket

daytona-tribeca-middle-t-bracket-650x650_1.webp__PID:d7bb9931-4aaa-40c8-9530-54139b9ae53a

Middle ‘T’ Bracket

daytona-tribeca-inside-l-bracket-650x650.png__PID:9bd62dea-031f-474d-b229-ad34cb8e33dd

Inside ‘L’ Bracket

The "T" and "L" Brackets connect to the Upright Channel and Base U-Channel.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
2Outside ‘T’ Bracket1320139 121616
24
3Middle ‘T’ Bracket 1320138 1216
1624
4Inside ‘L’ Bracket 1320147 121616
24

Base U-Channel – Index 7

daytona-tribeca-inside-base-u-channel-650x650.png__PID:14773033-b006-48d5-9865-5955ce12c29d

Base U-Channel

The Base U-Channels are located on the straight section of the oval pool.

This is where your Upright Channel, "T" and "L" Brackets, Strap Brackets, and Hold Down Plates are attached.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
7Base U-Channel1440335 688
12

Hold Down Plate (Pressure Plate) – Index 11

daytona-tribeca-pressure-plate-650x650.webp__PID:4aaad0c8-d530-4413-9b9a-e53a6e812cd1

Hold Down Plate

The Pressure Plates are corrugated steel plates that attach to the Base U-Channels.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
11Hold Down Plate1320166 121616
24

Bottom Rail – Index K

quest-bottom-track-aluminum_3_8_1_1_1_1.webp__PID:aaf8eb1d-197b-493c-bfc9-25434a15c46c

Bottom Rail

The Bottom Rail (sometimes referred to as Bottom Track) is where your pool wall sits.

The Bottom Rail inserts into the Foot Covers.

Ref #DescriptionPart # Length 15'x26' 15'x30' 18'x33' 18'x40'
KBottom Rail (Straight Section) 16713 37-1/2" 46
6
10
Bottom Rail (Transition Section) 16714 39" 4
444
Bottom Rail (Round Section) 14950 49" 1010


Bottom Rail (Round Section)1494950"
1212

Strap – Index 8

daytona-tribeca-strap-650x650.png__PID:9c74a673-b887-4fa2-90c3-fef6f37741fb

Strap

The Straps are connected to the Strap Brackets and lay flat across the width of our Oval Swimming Pools.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
8Strap 15’ 22095 912

Strap 18'22096
1218

Strap Bracket – Index 30

daytona-tribeca-strap-bracket-650x650.png__PID:92c7cddb-8ac5-42e3-9e85-a03f8a72d721

Strap Bracket

The Strap Brackets attach to your Base U-Channels.

This is where your Straps are connected.

Ref #DescriptionPart # 15'x26' 15'x30' 18'x33' 18'x40'
30Strap Bracket1320164 688
12

Coping Strips – Only Included with Overlap Liners

coping-strips-650x650-small-dm-275x275.jpg__PID:7bd850ee-67f8-4d53-83fa-875b77af32c0

Coping Strips

IMG_5997-275x275.jpg__PID:bc7bd850-ee67-48fd-9303-fa875b77af32

Overlap Liner Installation Using Coping Strips

An Overlap Pool Liner is installed by overlapping it over the pool wall and using plastic Coping Strips to hold it in place. Coping Strips are not required when installing a Uni-Bead Liner or J-Hook Liner.

Click on the tab below to view the Manufacturer’s Installation and Safety Instructions for the Daytona Oval Swimming Pool.

DAYTONA OVAL INSTALLATION & SAFETY INSTRUCTIONS
