How To Identify Your Hampton Oval Pool Components
Hampton Oval Pool Model

Hampton Oval Pool Model

Parts Breakdown

Identifying the parts of your pool model before you begin your installation will make the process of assembling the swimming pool much easier. Below you will find a complete breakdown of the parts and components for the Hampton Oval Swimming Pool Model.

Hampton Oval Parts Listing Curved Section

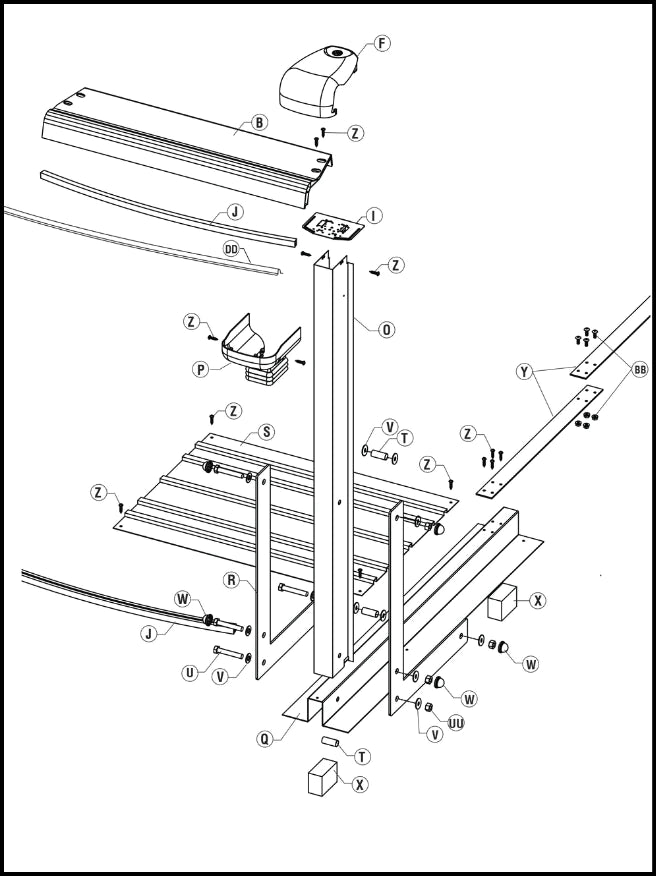

Hampton Oval Parts Listing Straight Section

Top Ledge – Reference A & B

Hampton Top Ledge

Top Ledge

The Top Ledges (sometimes referred to as Top Rails) are the resin top finishing components of the swimming pool that are placed between the vertical upright posts. The Top Ledges are 9″ wide and are located at the very top of your pool.

Material: Resin

Ref #DescriptionPart # Length 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
ATop Ledge 9RL110MR31-1/4"1010
10
12
12
12
BTop Ledge (Straight Side)9RL109MR32-5/8"4
68
468
Ref #DescriptionPart # Length 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32'
ATop Ledge 9RL105MR47 3/8"1010
1010
ATop Ledge9RL104MR49 9/32"

12
ATop Ledge9RL111MR43 7/8"


12

BTop Ledge (Straight Side)9RL109MR32-5/8"46
810
412
Ref #DescriptionPart # Length 18'x33'
ATop Ledge 9RL102MR45-1/2"14
BTop Ledge (Straight Side)9RL109MR32-5/8"12

Top/Bottom Tracks – Reference G & J

Hampton Top and Bottom Tracks

Top/Bottom Track

The Top and Bottom Tracks for the Hampton Oval pool are the same exact part.

The Top Tracks stabilize the top of the pool wall.

The Bottom Track inserts into the Upright Boots on the curved sides of the oval swimming pool and sit on top of the Foot Beams on the Straight Sides.

Material: Coated Steel

Ref #DescriptionPart # Length 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
GTop/Bottom Track Curved Side61014030"2020
20



GTop/Bottom Track Curved Side61013631"

242424
JTop/Bottom Track Straight Side61013132"812
16
8
12
16
Ref #DescriptionPart # Length 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32'
GTop/Bottom Track Curved Side61012847"2020
2020
GTop/Bottom Track Curved Side61013743-3/4"
24
GTop/Bottom Track Curved Side61012948-5/8"



24
JTop/Bottom Track Straight Side61013132"812
1620
824
Ref #DescriptionPart # Length 18'x33'
GTop/Bottom Track Curved Side61013044-3/4"28
JTop/Bottom Track Straight Side61013132"24

Top Caps – Reference F

Top Cover Cap for Hampton Pool

Top Cap

The Top Caps go over the Top Joiner Plates. The Top Caps cover all of the hardware where your Top Ledges screw into the Top Joiner Plates.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
FTop Cap 9CAPMR 141618
16
18
20
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
F
Top Cap 9CAPMR 141618
20
16
24
26

Cap Extension Collar – Reference H & P

hampton-curved-upright-cap-650x650-small-dm_1125x1125.webp__PID:f6b68044-e57e-4af9-9239-3d6b491ff481

Cap Extension Collar Curved Side

hampton-straight-upright-cap-650x650-small-dm_1125x1125.webp__PID:a1f6b680-44e5-4eda-b9d2-393d6b491ff4

Cap Extension Collar Straight Side

The Upright Collars are installed at the top of every upright on the outside of the swimming pool.

For the oval shaped Hampton swimming pools there are (2) types of Cap Extension Collars. There are Cap Extensions for the straight side and also the curved sides of the oval. They will differ slightly in shape as the straight side of an oval pool has different uprights than the curved sides and the cap must fit onto the upright.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
HCap Extension Collar Curved Side 9EXRMR 888
1010
10
PCap Extension Collar Straight Side 9TCBMR 68
106810
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
H
Cap Extension Collar Curved Side 9EXRMR 888
8
10
10
12
PCap Extension Collar Straight Side9TCBMR 68
10
1261414

Top Connector Joiner Plate – Reference E & I

hampton-curved-joiner-plate-650x650-small-dm_1125x1125.webp__PID:942bf10a-9481-4f8a-9e3d-fb886ffc307e

Top Connector Joiner Plate for Oval Curved Side Uprights

hampton-straight-side-upright-joiner-plate-650x650-small-2-dm_1125x1125.webp__PID:98942bf1-0a94-41ef-8a9e-3dfb886ffc30

Top Connector Joiner Plate for Oval Straight Side Uprights

The Top Connector Joiner Plates are screwed in at the top of every Upright. Your swimming pool’s Top Ledges will be screwed into these Top Connectors Joiner Plates.

For oval shaped swimming pools there are (2) types of Top Connectors Joiner Plates. There are Top Connectors for the straight side and also the curved sides of the oval. They will differ slightly in shape as the straight side of an oval pool has different uprights than the curved sides and the Top Connector Joiner Plates must fit onto the top of the upright.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
ETop Connector Joiner Plate for Curved Side21001 888
1010
10
ITop Connector Joiner Plate for Straight Side 568UBC 68
106810
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
E
Top Connector Joiner Plate for Curved Side 21001 888
8
10
10
12
ITop Connector Joiner Plate for Straight Side568UBC 68
10
1261414

Upright Post – Reference D & O

hampton-curved-upright--2023-650x650.png__PID:63d5ec68-ce02-4606-992e-ca038004c28c

Upight Post for Curved Side

Upight Post for Straight Side for Hampton

Upight Post for Straight Side

The Uprights are the vertical posts on the outside of your swimming pool wall. Each upright post on the curved side of the swimming pool clips into the Upright Boots.

For oval shaped swimming pools there are (2) types of Uprights. There are Uprights for the straight side and also the curved sides of the oval. They will differ slightly in shape as the straight side of an oval pool has different uprights than the curved sides and the Top Connector Joiner plate must fit onto the top of the upright.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
DUpight Post for Curved Side6001MP52R4 888
1010
10
OUpight Post for Straight Side 7005SPNMK52R4 68
106810
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
D
Upight Post for Curved Side 6001MP52R4 888
8
10
10
12
OUpight Post for Straight Side7005SPNMK52R4 68
10
1261414

Upright Boot Bottom Connector – Reference C

hampton-bottom-boot-650x650-small-dm_1125x1125.webp__PID:c62cbd2c-504d-4412-929a-d46e4b0dafa0

Upright Boot Bottom Connector

The Upright Boot Bottom Connectors connect your Bottom Tracks together on the curved sides of an oval swimming pool. Your curved side upright posts will also clip into the Upright Boot Bottom Connector.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
CUpright Boot Bottom Connector9FCCOMBOM 888
1010
10
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
C
Upright Boot Bottom Connector 9FCCOMBOM 888
8
10
10
12

Coping Strips – Reference DD

coping-strips-650x650-small-dm-275x275.jpg__PID:7bd850ee-67f8-4d53-83fa-875b77af32c0

Coping Strips

IMG_5997-275x275.jpg__PID:bc7bd850-ee67-48fd-9303-fa875b77af32

Overlap Liner Installation Using Coping Strips

An Overlap Pool Liner is installed by overlapping it over the pool wall and using plastic Coping Strips to hold it in place. Coping Strips are not required when installing a Uni-Bead Liner or J-Hook Liner, but they are included with the swimming pool. If using a Uni-Bead or J-Hook liner you can discard the coping strips.

Splice Brackets – Reference R

Hampton Splice Bracket

Splice Bracket

The Splice Brackets are attached at each side of the straight side Upright Post.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
RSplice Brackets9014GV 121620
1216
20
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
R
Splice Brackets 9014GV 121620
24
12
28
28

Foot Beam – Reference Q

Hampton Foot Beam

Foot Beam

The Foot Beams are installed on the straight sides of the oval and towards the inside of the pool area.

The Straight Side Upright Posts, Splice Brackets, Tension Straps and Pressure Plates will be installed to these Foot Beams.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
QFoot Beam9013 6810
68
10
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
Q
Foot Beam 9013 6810
12
6
14
14

Pressure Plate – Reference S

hampton Pressure Plate

Pressure Plate

The Pressure Plates are corrugated steel plates that attach to the Foot Beams.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
SPressure Plate9019GVBTM 468
46
8
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
S
Pressure Plate 9019GVBTM 468
10
4
12
12

Tension Straps – Reference Y

Hampton Tension Strap

Tension Strap

The Tension Straps are connected to the Foot Beams and lay flat across the width of our Oval Swimming Pools.

Ref #DescriptionPart # Length 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
YTension Strap900124-7/8"34
5


900248-7/8"

345
Ref #DescriptionPart # Length 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32'
YTension Strap900337-15/16"68
1012
900650-1/8"
6
900441-1/4"



21
Ref #DescriptionPart # Length 18'x33'
YTension Strap900549-15/16"21

Foam Block – Reference X

Hampton Foam Block

Foam Block

The Foam Blocks are inserted into each end of the Foot Beams. The Foam Blocks are used to prevent voids (sink holes) from forming at the location of the Foot Beams.

Ref #DescriptionPart # 8'x14' 8'x16' 8'x19' 10'x16' 10'x18' 10'x21'
XFoam Block8516 121620
1216
20
Ref #DescriptionPart # 12'x18' 12'x21' 12'x24' 12'x27' 14'x20' 16'x32' 18'x33'
X
Foam Block 8516 121620
24
12
28
28

Click on the tab below to view the Manufacturer’s Installation and Safety Instructions for the Hampton Oval Swimming Pool.
