How To Identify
Your Saltwater LX Round Pool Components
Learn how to identify the different components of your Saltwater LX Round Pool.
Saltwater LX Round Pool Model
Parts Breakdown
Identifying the parts of your swimming pool before the installation process will make the installation a lot easier and go more smoothly. Below you will find a breakdown of the parts that are used on our Saltwater LX Round Above Ground swimming pool and where they are used and installed.
Top Ledge – Index #F
Top Ledge
The Top Ledges (sometimes referred to as Top Rails) are the top finishing components of the swimming pool that are placed between the vertical upright posts. The Top Ledges are 8″ wide and are located at the very top of your pool.
Material: Injected-molded Resin
| Ref # | Description | Part # | Length | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|---|
| F | Top Ledge | 10141350000 | 56" | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | Length | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|---|
| F | Top Ledge | 10141350000 | 56" | 16 | 18 | 20 | 22 |
Top Track – Index #A
Top Track
The Top Tracks (sometimes referred to as Inner Stabilizers) are the resin tracks that hold the liner onto the pool wall.
Material: Resin
| Ref # | Description | Part # | Length | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|---|
| A | Top Track | 1071507160000 | 56" | 8 | 10 | ||
| 1072407160000 | 56" | 12 | 14 |
| Ref # | Description | Part # | Length | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|---|
| A | Top Track | 1072407160000 | 56" | 16 | |||
| 1073007160000 | 56" | 18 | 20 | 22 |
Top Caps – Index #G

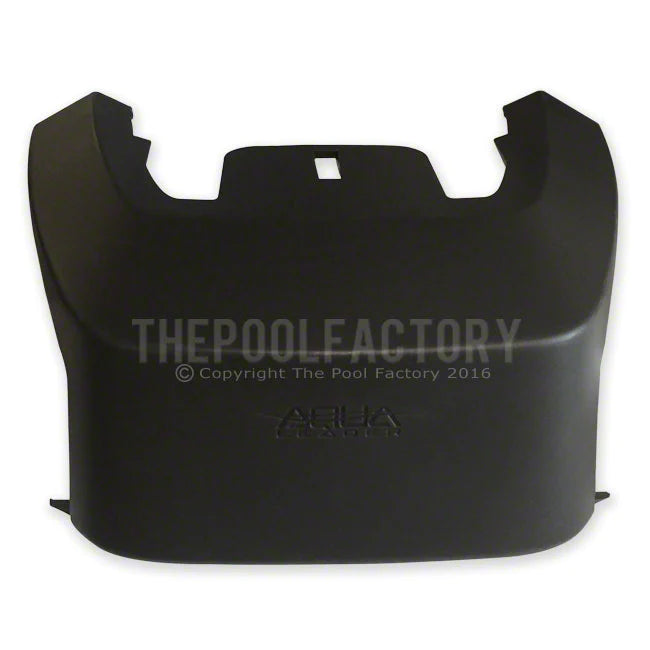

Top Cap/Front Part
Top Cap/Back Part
The Top Caps consists of (2) parts. There is an Top Cap/Front Part which is closer to the outside of the pool. The Top Cap/Back Part is installed on the inside of the swimming pool closer to the water. The Top Caps cover all of the hardware where your Top Ledges screw into the Top Joiner Plates.
| Ref # | Description | Part # | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|
| G | Top Cap/Front Part | 10341350000 | 8 | 10 | 12 | 14 |
| G | Top Cap/Back Part | 10341350010 | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|
| G | Top Cap/Front Part | 10341350000 | 16 | 18 | 20 | 22 |
| G | Top Cap/Back Part | 10341350010 | 16 | 18 | 20 | 22 |
Top Cap Cover Plate – Index #H
Top Cap Cover Plate
The Top Cap Cover Plates cover where the Top Caps screw into the Top Joiner Plate.
| Ref # | Description | Part # | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|
| H | Top Cap Cover Plate | 10341350030 | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|
| H | Top Cap Cover Plate | 10341350030 | 16 | 18 | 20 | 22 |
Top Joiner Plate – Index #I
Top Joiner Plate
The Top Joiner Plates are screwed in at the top of every Upright. Your swimming pool’s Top Ledges will be screwed into these Top Joiner Plates.
| Ref # | Description | Part # | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|
| I | Top Joiner Plate | 11141350000 | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|
| I | Top Joiner Plate | 11141350000 | 16 | 18 | 20 | 22 |
Upright – Index #E
Curved Side Upright
The Uprights are the vertical posts on the outside of your swimming pool wall.
| Ref # | Description | Part # | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|
| E | Upright | 10243350004 | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|
| E | Upright | 10243350004 | 16 | 18 | 20 | 22 |
Bottom Joiner Plate – Index #J
Bottom Joiner Plate
The Bottom Joiner Plates connect your Bottom Tracks together on a round pool. Your curved side uprights will also clip into the Bottom Joiner Plates.
| Ref # | Description | Part # | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|
| J | Bottom Joiner Plate | 11241350000 | 8 | 10 | 12 | 14 |
| Ref # | Description | Part # | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|
| J | Bottom Joiner Plate | 11241350000 | 16 | 18 | 20 | 22 |
Bottom Track – Index #B
Bottom Track
The Bottom Track (sometimes referred to as Bottom Rail) is where your pool wall sits.
The Bottom Track inserts into the Bottom Joiner Plates.
Material: Resin
| Ref # | Description | Part # | Length | 12' | 15' | 18' | 21' |
|---|---|---|---|---|---|---|---|
| B | Bottom Track | 1081541000000 | 56" | 8 | 10 | ||
| 1082441000000 | 56" | 12 | 14 |
| Ref # | Description | Part # | Length | 24' | 27' | 30' | 33' |
|---|---|---|---|---|---|---|---|
| B | Bottom Track | 1082441000000 | 56" | 16 | |||
| 1083041000000 | 56" | 18 | 20 | 22 |
Coping Strips – Only Included with Overlap Liners
Coping Strips
Overlap Liner Installation Using Coping Strips
An Overlap Pool Liner is installed by overlapping it over the pool wall and using plastic Coping Strips to hold it in place. Coping Strips are not required when installing a Uni-Bead Liner or J-Hook Liner.
Click on the tab below to view the Manufacturer’s Installation and Safety Instructions for the Saltwater LX Round Swimming Pool.
SALTWATER LX ROUND INSTALLATION & SAFETY INSTRUCTIONSSaltwater LX Replacement Parts
