How To Identify Your
Saltwater Titan Round Pool Components

Learn how to identify the different components of your Saltwater Titan Round Pool.

How To Identify Your Saltwater Titan Round Pool Components
Saltwater Titan Round Pool Model

Saltwater Titan Round Pool Model

Parts Breakdown

Identifying the parts of your pool model before you begin your installation will make the process of assembling the swimming pool much easier. Below you will find a complete breakdown of the parts and components for the Saltwater Titan Round Swimming Pool Model.

Saltwater Titan Round Parts Listing

Top Ledge – Reference A

Saltwater Titan Top Ledge

Top Ledge

The Top Ledges (sometimes referred to as Top Rails) are the resin top finishing components of the swimming pool that are placed between the vertical upright posts. The Top Ledges are 9″ wide and are located at the very top of your pool.

Material: Resin

Ref #DescriptionPart # Length 12' 15' 18' 21'
ATop Ledge 9RL108GS45-1/4"10


Top Ledge9RL107GS55-7/8"
1012
14
Ref #DescriptionPart # Length 24' 27' 30' 33'
ATop Ledge 9RL107GS55-7/8"1618
2022

Top Tracks – Reference K

Saltwater Titan Top Tracks

Top Track

The Top Tracks stabilize the top of the pool wall.

Material: Resin

Ref #DescriptionPart # Length 12' 15' 18' 21'
KTop Track 2003645-1/8"10


R2041533NOIR55-1/2"
1012
14
Ref #DescriptionPart # Length 24' 27' 30' 33'
KTop Track R2041533NOIR55-1/2"1618
2022

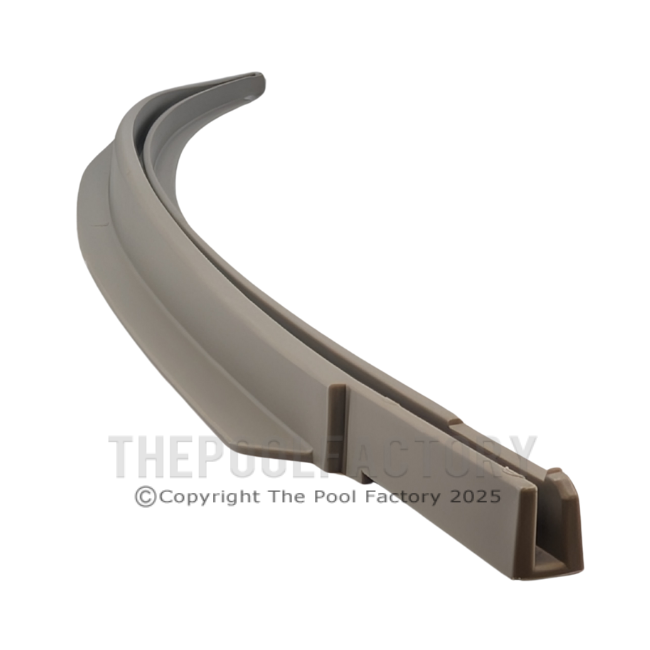

Bottom Tracks – Reference G

Saltwater Titan Bottom Tracks

Bottom Track

The Bottom Tracks insert into the Upright Boots.

Material: Resin

Ref #DescriptionPart # Length 12' 15' 18' 21'
GBottom Track R2033644-1/2"10


R203151855-1/2"
1012
R203213355-1/2"

14
Ref #DescriptionPart # Length 24' 27' 30' 33'
GBottom Track R203213355-1/2"1618
2022

Top Caps – Reference F

Top Cover Cap for Saltwater Titan Pool

Top Cap

The Top Caps go over the Top Joiner Plates. The Top Caps cover all of the hardware where your Top Ledges screw into the Top Joiner Plates.

Ref #DescriptionPart # 12' 15' 18' 21'
FTop Cap 9CAPGF101012
14
Ref #DescriptionPart # 24' 27' 30' 33'
F
Top Cap 9CAPGF161820
22

Cap Extension Collar – Reference M

Saltwater Titan Cap Extension Collar - Round & Oval Curved Side

Cap Extension Collar Curved Side

The Upright Collars are installed at the top of every upright on the outside of the swimming pool.

Ref #DescriptionPart # 12' 15' 18' 21'
MCap Extension Collar9EXRGF101012
14
Ref #DescriptionPart # 24' 27' 30' 33'
M
Cap Extension Collar 9EXRGF161820
22

Top Connector Joiner Plate – Reference E

Top Joiner Plate for Round & Oval Curved Side Saltwater Titan Pool Models

Top Connector Joiner Plate for Uprights

The Top Connector Joiner Plates are screwed in at the top of every Upright. Your swimming pool’s Top Ledges will be screwed into these Top Connectors Joiner Plates.

Ref #DescriptionPart # 12' 15' 18' 21'
ETop Connector Joiner Plate6RTC101012
14
Ref #DescriptionPart # 24' 27' 30' 33'
E
Top Connector Joiner Plate 6RTC161820
22

Upright Post – Reference D

Upright Post for Round & Oval 54

Upight Post for Curved Side

The Uprights are the vertical posts on the outside of your swimming pool wall. Each upright post clips into the Upright Boots.

Ref #DescriptionPart # 12' 15' 18' 21'
DUpright PostR6001GF54101012
14
Ref #DescriptionPart # 24' 27' 30' 33'
D
Upright Post R6001GF54 161820
22

Upright Boot Bottom Connector – Reference C

Upright Boot for Round & Oval Curved Side Saltwater Titan Pool Models

Upright Boot Bottom Connector

The Upright Boot Bottom Connectors connect your Bottom Tracks together. Your Upright Posts will also clip into the Upright Boot Bottom Connector.

Ref #DescriptionPart # 12' 15' 18' 21'
CUpright Boot Bottom Connector9FCCOMBOMGF101012
14
Ref #DescriptionPart # 24' 27' 30' 33'
C
Upright Boot Bottom Connector 9FCCOMBOMGF 161820
22

Coping Strips – Reference DD

Coping For Overlap Liners - 2ft. Section

Coping Strips

Coping For Overlap Liners - 2ft. Section

Overlap Liner Installation Using Coping Strips

An Overlap Pool Liner is installed by overlapping it over the pool wall and using plastic Coping Strips to hold it in place. Coping Strips are not required when installing a Uni-Bead Liner or J-Hook Liner, but they are included with the swimming pool. If using a Uni-Bead or J-Hook liner you can discard the coping strips.

Click on the tab below to view the Manufacturer’s Installation and Safety Instructions for the Saltwater Titan Round Swimming Pool.

SALTWATER TITAN ROUND INSTALLATION & SAFETY INSTRUCTIONS
